The SMART Twin

A SMART twin is the running instrument’s digital counterpart, shaped by the standard itself: the Recommendation declares which values the twin serves and how fresh they must be, and the platform’s compliance engine judges the served evidence continuously. The certificate stops being a point-in-time snapshot and becomes a live, re-computed state.

Watch the monitor run in the demo →

This page is a SMART+ page: the twin is the vision tier, and the split below is honest about which parts run today (against the simulated fleet, in the demo) and which are roadmap (physical instruments, signed serves, member deployments).

What it does today

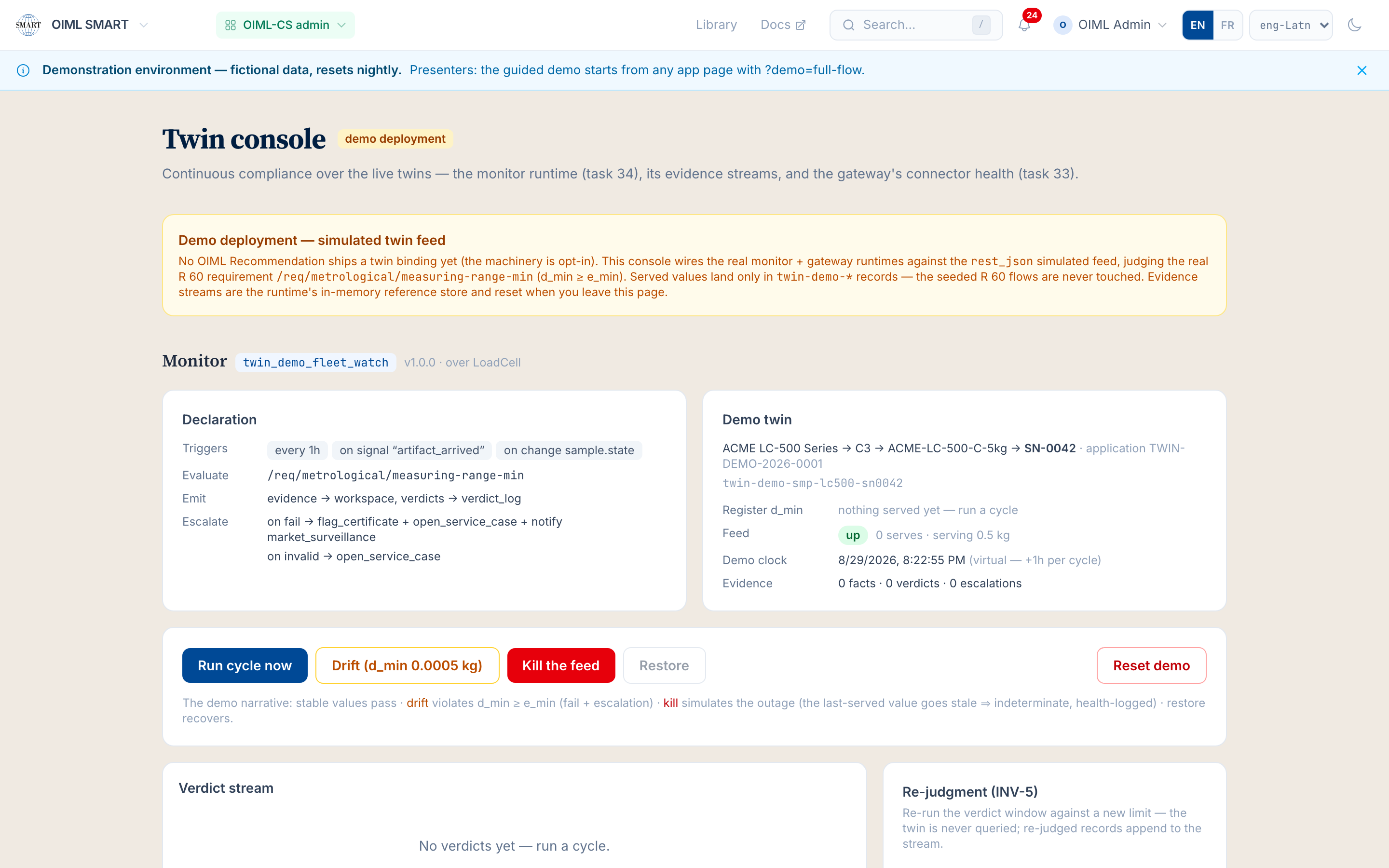

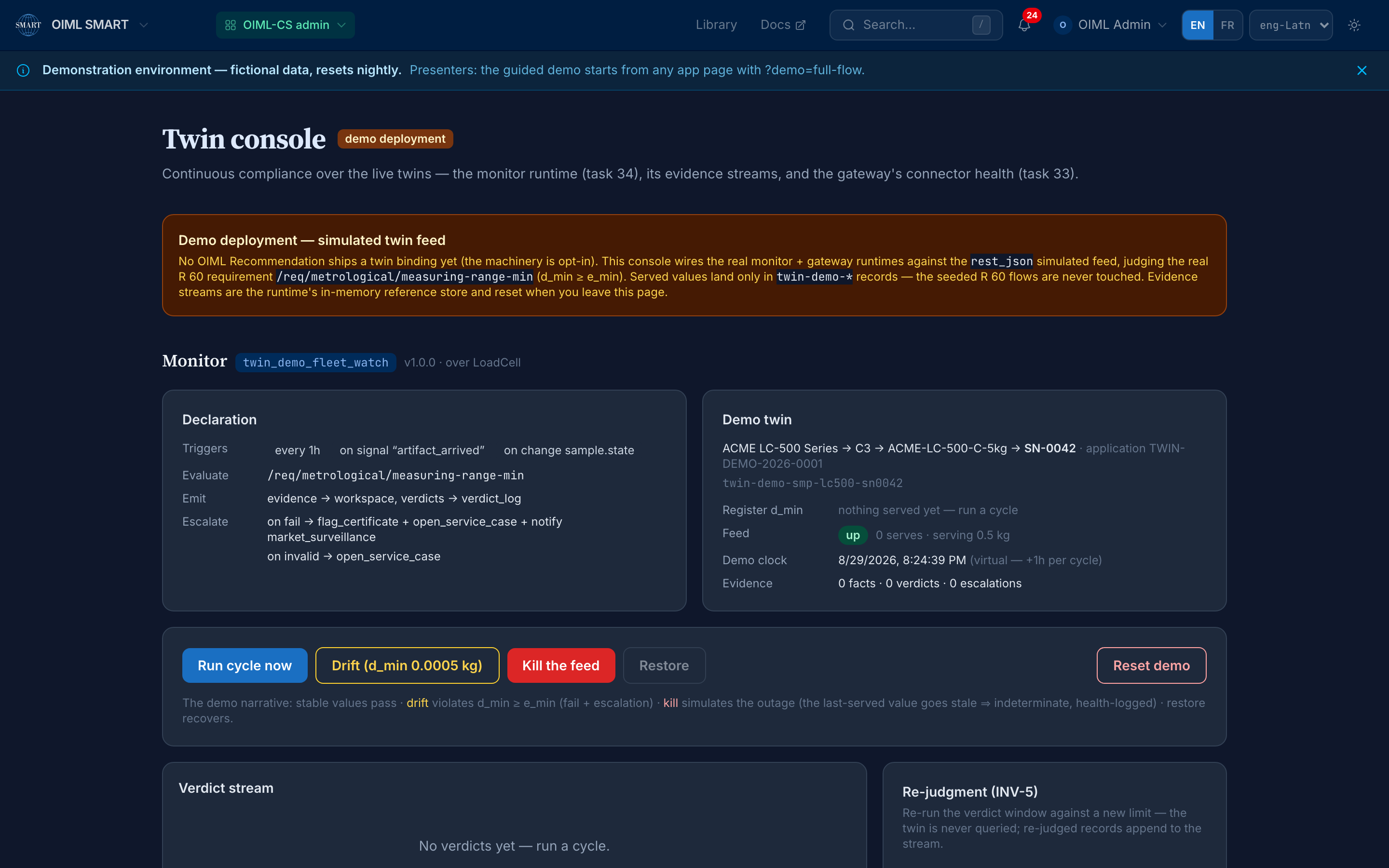

• Judges a live twin in the demo. The twin console wires the real monitor and gateway runtimes against the simulated feed, judging the modelled R 60 requirement measuring-range-min on every poll; assume the Admin persona through the identity service’s account chooser and provision the demo twin (the capture above).
• Degrades honestly. A stale served value degrades the requirement’s verdict to indeterminate rather than failing or passing silently; the freshness gate reads the twin’s own timestamps.
• Introspects instead of assuming. The twin lab connects to a served interface and reads its declared registers and operations, never a hard-coded shape.
• Keeps the evidence. Facts, verdicts, and escalations accrue in append-only, version-pinned evidence streams; a stored window can be re-judged under new limits without querying the twin again (in the demo the store is in-memory and resets with the page, as the console itself states).
• Reads as an AAS submodel. To an Asset Administration Shell consumer, served registers map to properties and commands to operations; the asymmetry is governance, documented on the interoperability page.

How it works

Two distinctions carry the design. The first separates the abstract reference from the live twin: the manufacturer’s product reference model declares what the instrument type promises and serves; the live twin is one running instrument’s governed projection, pinned to that reference and answering for itself. The second separates the twin’s own declaration from its judgment: the Recommendation’s twin declaration fixes the interface (which registers, through which operations, with which freshness windows), and the platform’s monitor computes verdicts per requirement per twin against it. The declarations are authored in Primmel, the open modelling language the program adopts, so the interface a twin serves is derived from the standard, never hand-designed per instrument.

Physical evidence stays primary: the twin-certification program pairs served values with a probe channel (a reference instrument, an observer attestation, or simulator ground truth), so a lying twin is caught by physics rather than by signature checks.

Today (SMART) and the vision (SMART+)

Why it exists

Type evaluation today ends at issuance. The instrument then enters service, drifts, is recalibrated or repaired, and its conformity is re-established episodically, from paper records, at re-verification. Between those episodes the authority’s record says nothing about the instrument’s actual state. A twin that serves its governed registers turns surveillance into a continuous computation over evidence instead of a periodic excavation of files.

Who may use it, and who may run it

The SMART Twin is the SMART+ tier, and the program’s determination for it is roadmap across every member category, quoted here from the single entitlement source. The pilot surfaces above are open today; the member deployments follow the roadmap.

The honest questions

Is this live for physical instruments today? No, and the page says so wherever it matters. Today the monitor and gateway runtimes run in the demo against the simulated fleet, judging a real modelled requirement. Physical-instrument bindings, the deployable compliance engine, and cryptographically signed serves are roadmap items, labeled roadmap above with their anchors.

How is a SMART twin different from the manufacturer’s own dashboard? A dashboard serves whatever the vendor chose to expose. A SMART twin serves the governed projection the Recommendation declares: identical across conforming instruments, with freshness semantics, standing behind a certification verdict.

What stops a twin from lying? The probe channel. Served values are paired with physical evidence (a reference instrument, an observer attestation, simulator ground truth in rehearsal), so a twin that misreports is caught by physics, not by trusting its signature.

What happens when a twin goes silent? The verdict degrades to indeterminate. The freshness gate reads the twin’s own timestamps; the platform never upgrades silence into a pass, and never reports an outage as a failure it cannot distinguish.

Try it, read it, talk to us
